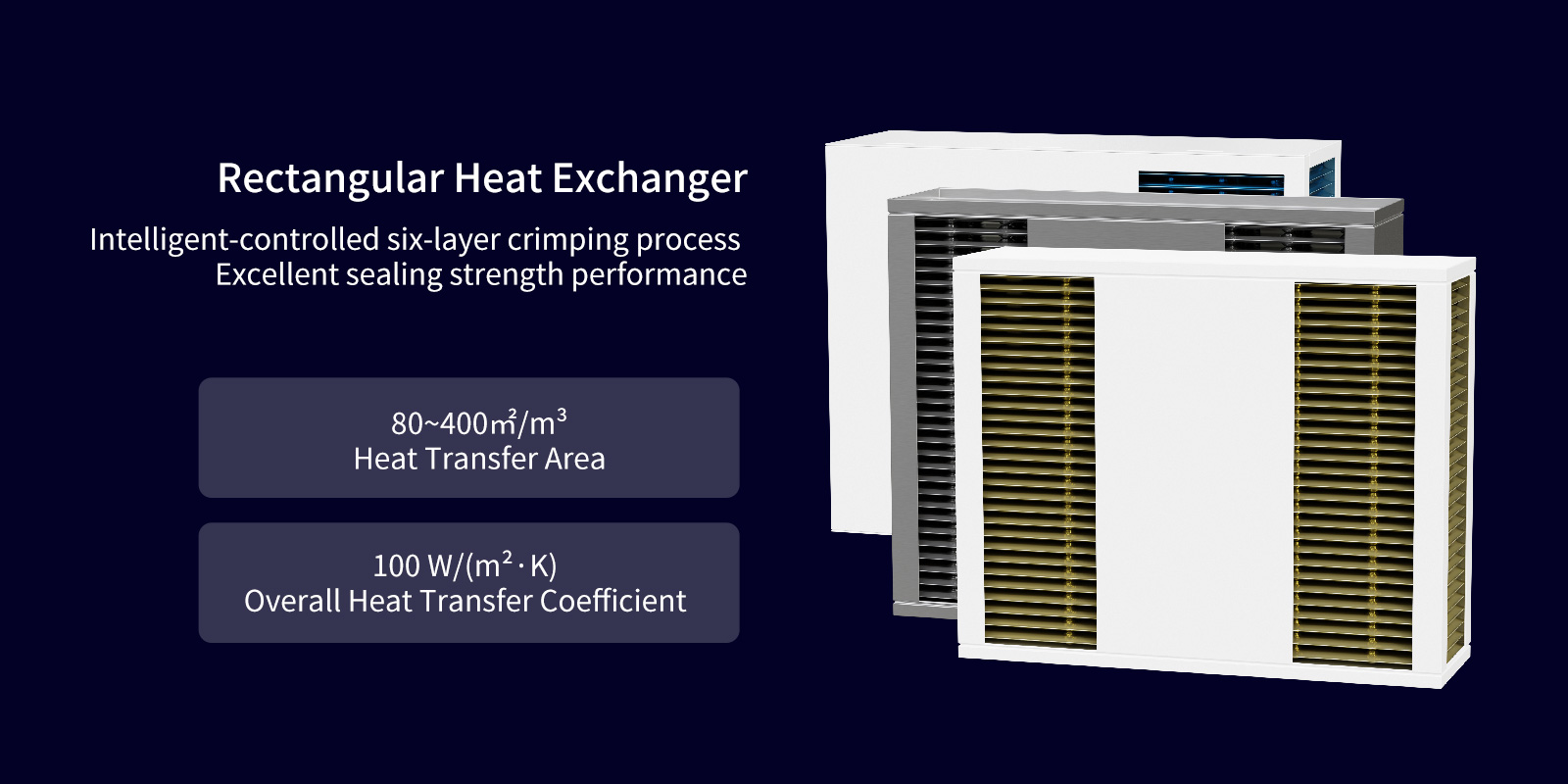

Rectangular Heat Exchanger
Rectangular Heat Exchanger
Intelligent‑controlled six‑layer crimping process Excellent sealing strength performance.
80~400㎡/m³Heat Transfer Area.
100 W/(m²·K)Overall Heat Transfer Coefficient.

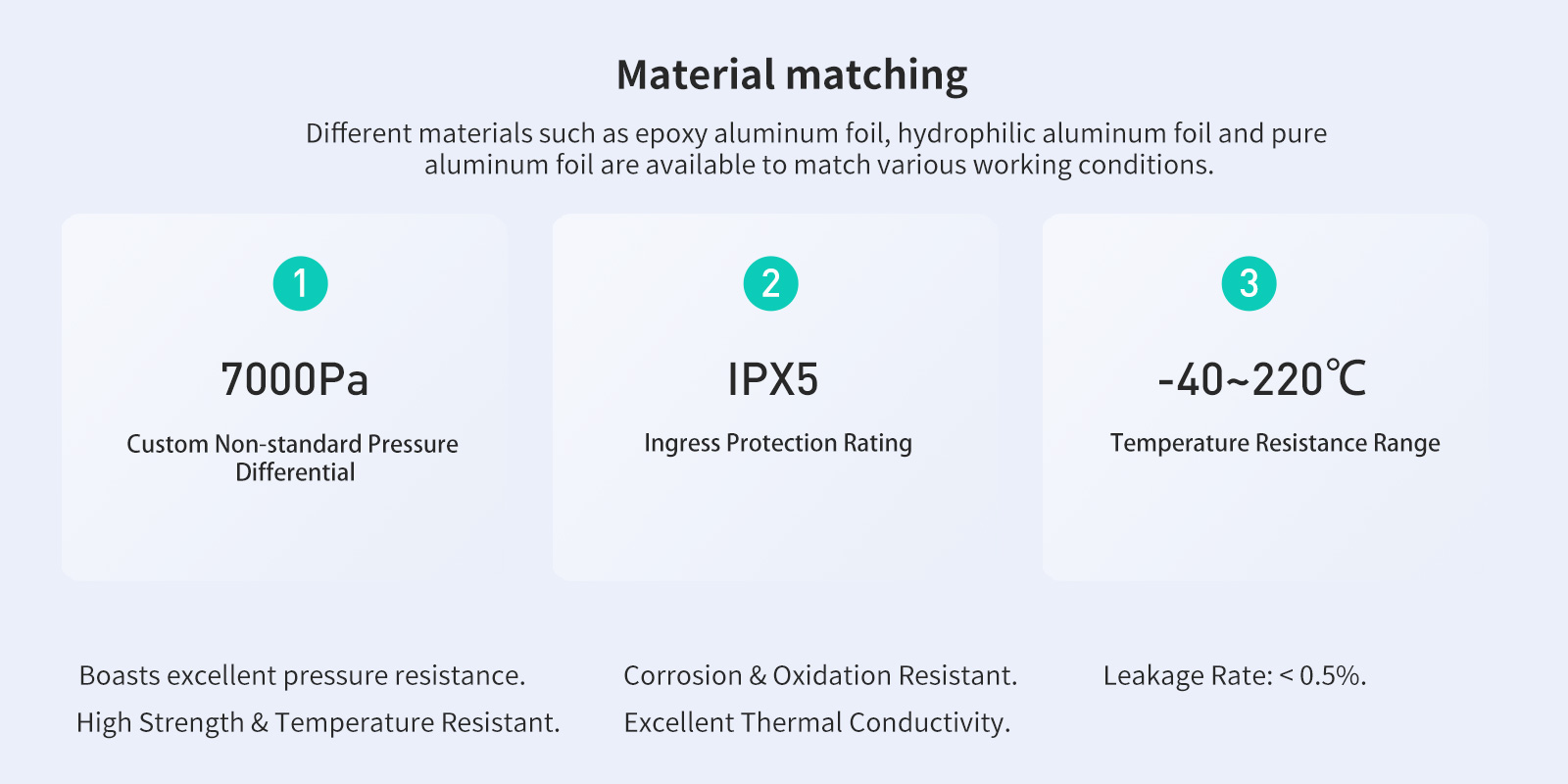

Material matching
Different materials such as epoxy aluminum foil, hydrophilic aluminum foil and pure aluminum foil are available to match various working conditions.
7000Pa Custom Non-standard Pressure Differential.
IPX5 Ingress Protection Rating.
-40~220℃Temperature Resistance Range.
Boasts excellent pressure resistance.
High Strength & Temperature Resistant.
Corrosion & Oxidation Resistant.
Excellent Thermal Conductivity.
Leakage Rate: < 0.5%.

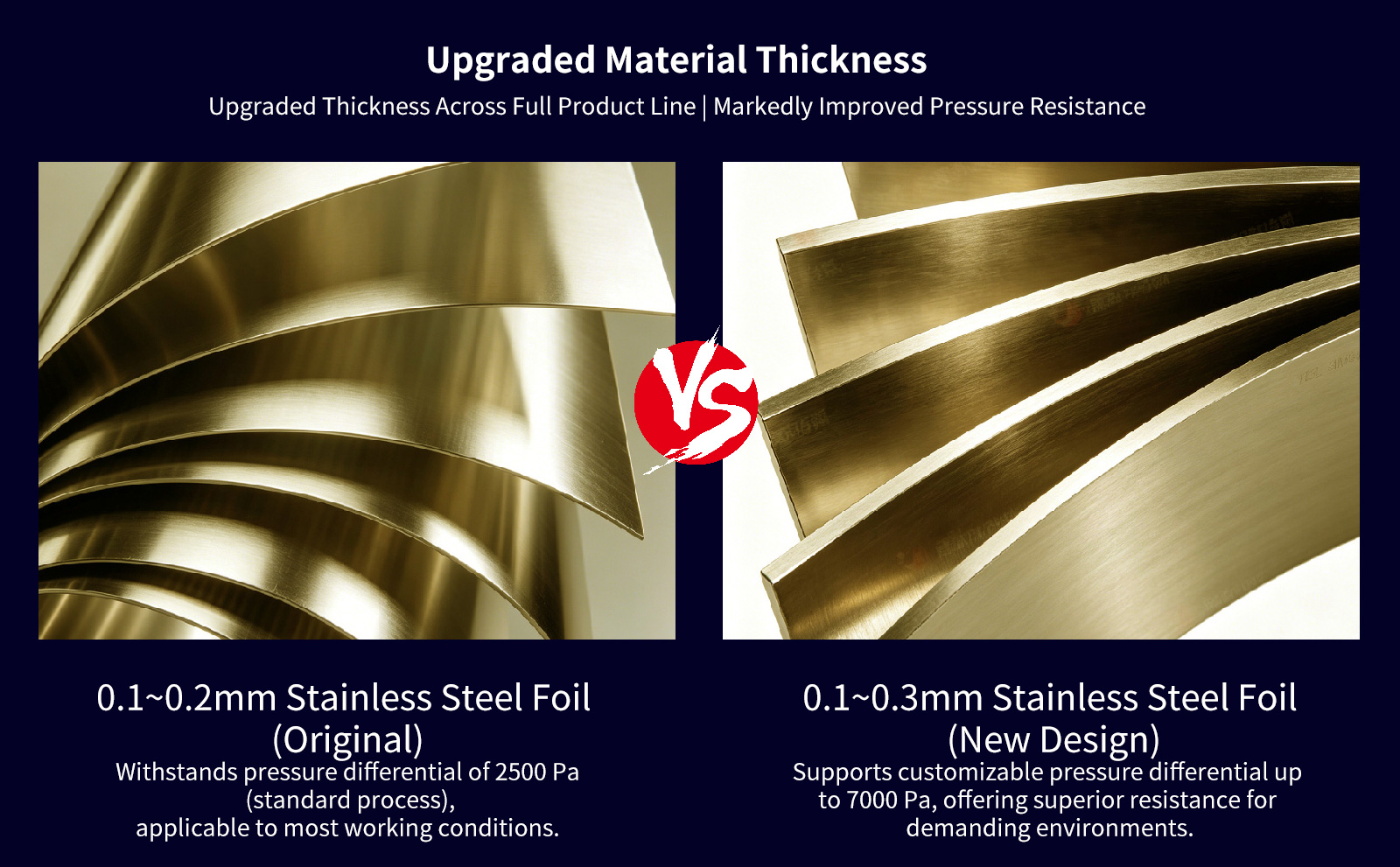

Upgraded Thickness Across Full Product Line | Markedly Improved Pressure Resistance
0.1~0.2mm Stainless Steel Foil (Original)
Withstands pressure differential of 2500 Pa (standard process),applicable to most working conditions.
0.1~0.3mm Stainless Steel Foil (New Design)
Supports customizable pressure differential up to 7000 Pa, offering superior resistance for demanding environments.

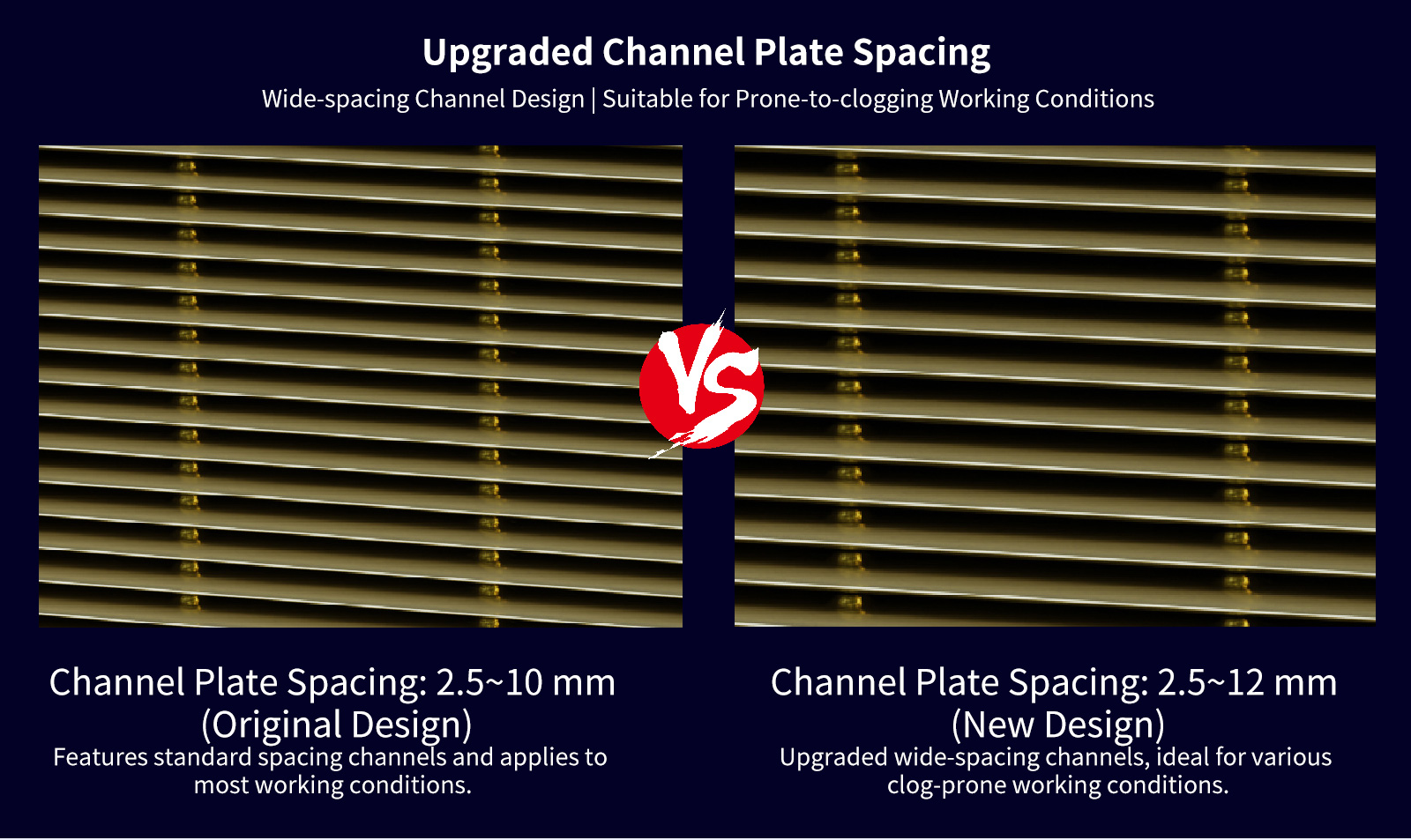

Upgraded Channel Plate Spacing
Wide-spacing Channel Design | Suitable for Prone-to-clogging Working Conditions
Channel Plate Spacing: 2.5~10 mm (Original Design)
Features standard spacing channels and applies to most working conditions.
Channel Plate Spacing: 2.5~12 mm (New Design)
Upgraded wide-spacing channels, ideal for various clog-prone working conditions.

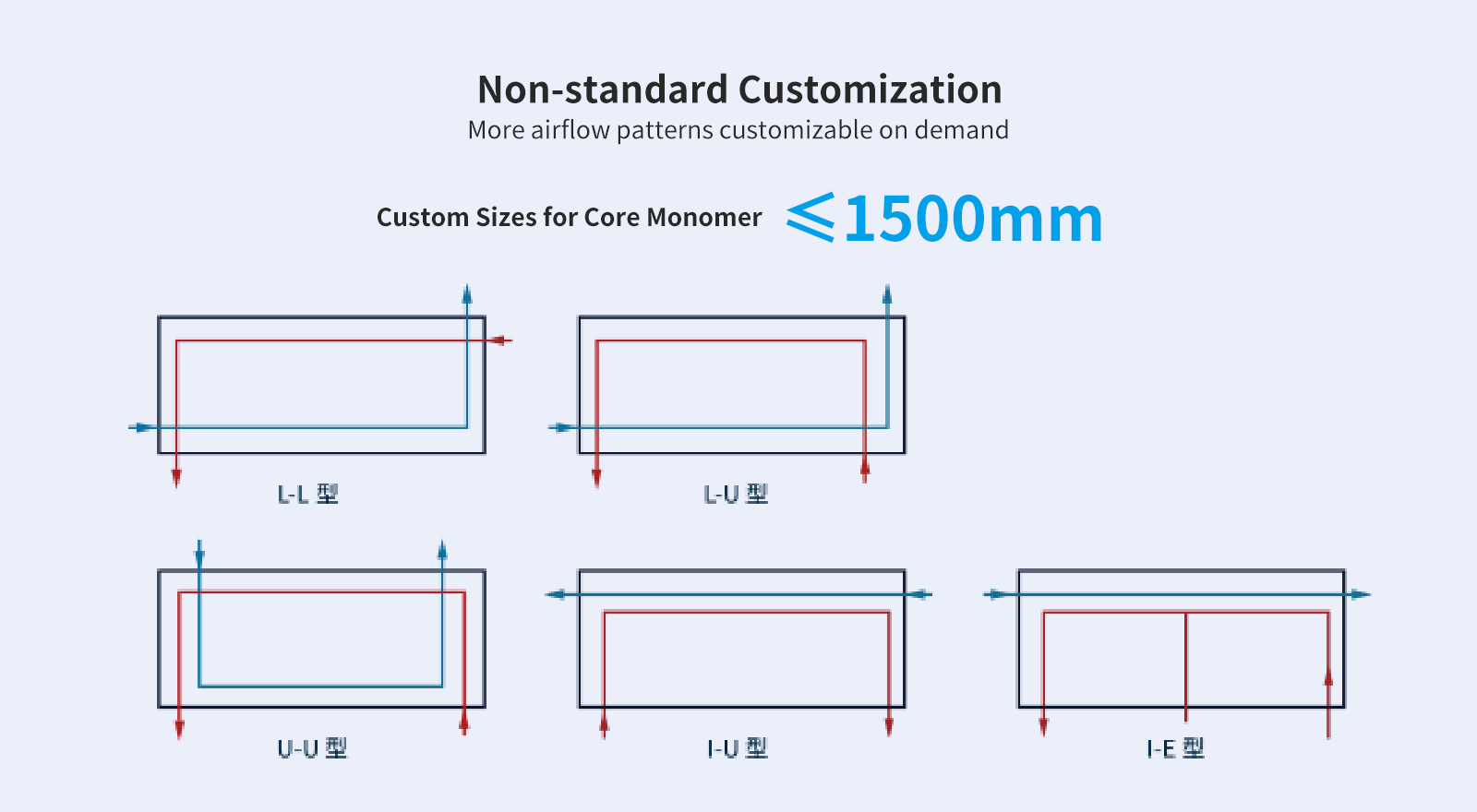

Non-standard Customization
More airflow patterns customizable on demand
Custom Sizes for Core Monomer≤1500mm.

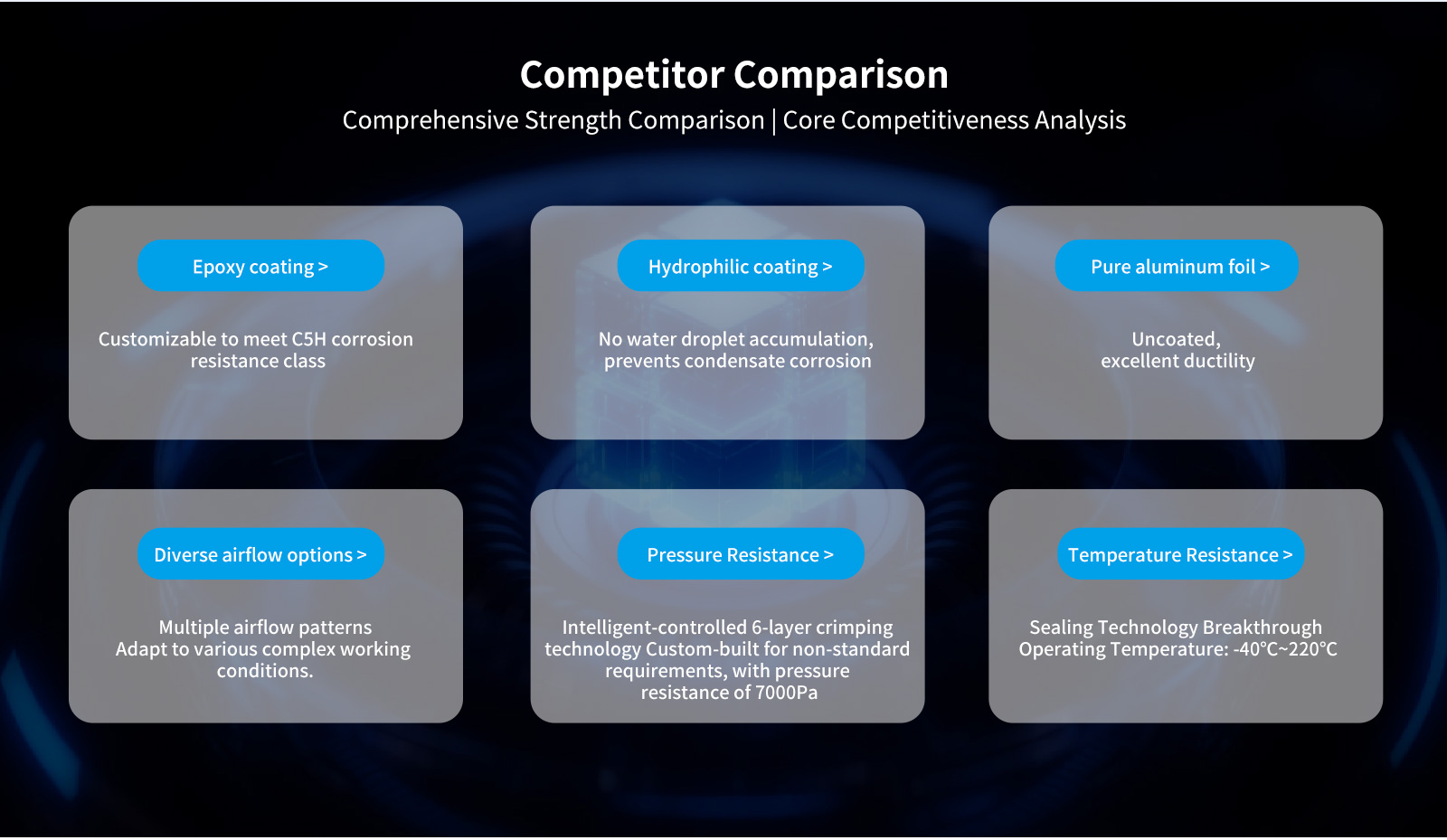

Competitor Comparison
Comprehensive Strength Comparison | Core Competitiveness Analysis
Epoxy coating >
Customizable to meet C5H corrosion resistance class.
Hydrophilic coating >
No water droplet accumulation, prevents condensate corrosion.
Pure aluminum foil >
Uncoated, excellent ductility.
Diverse airflow options >
Multiple airflow patterns Adapt to various complex working conditions.
Pressure Resistance >
Intelligent-controlled 6-layer crimping technology Custom-built for non-standard requirements, with pressure resistance of 7000Pa.
Temperature Resistance >
Sealing Technology Breakthrough Operating Temperature: -40℃~220℃.

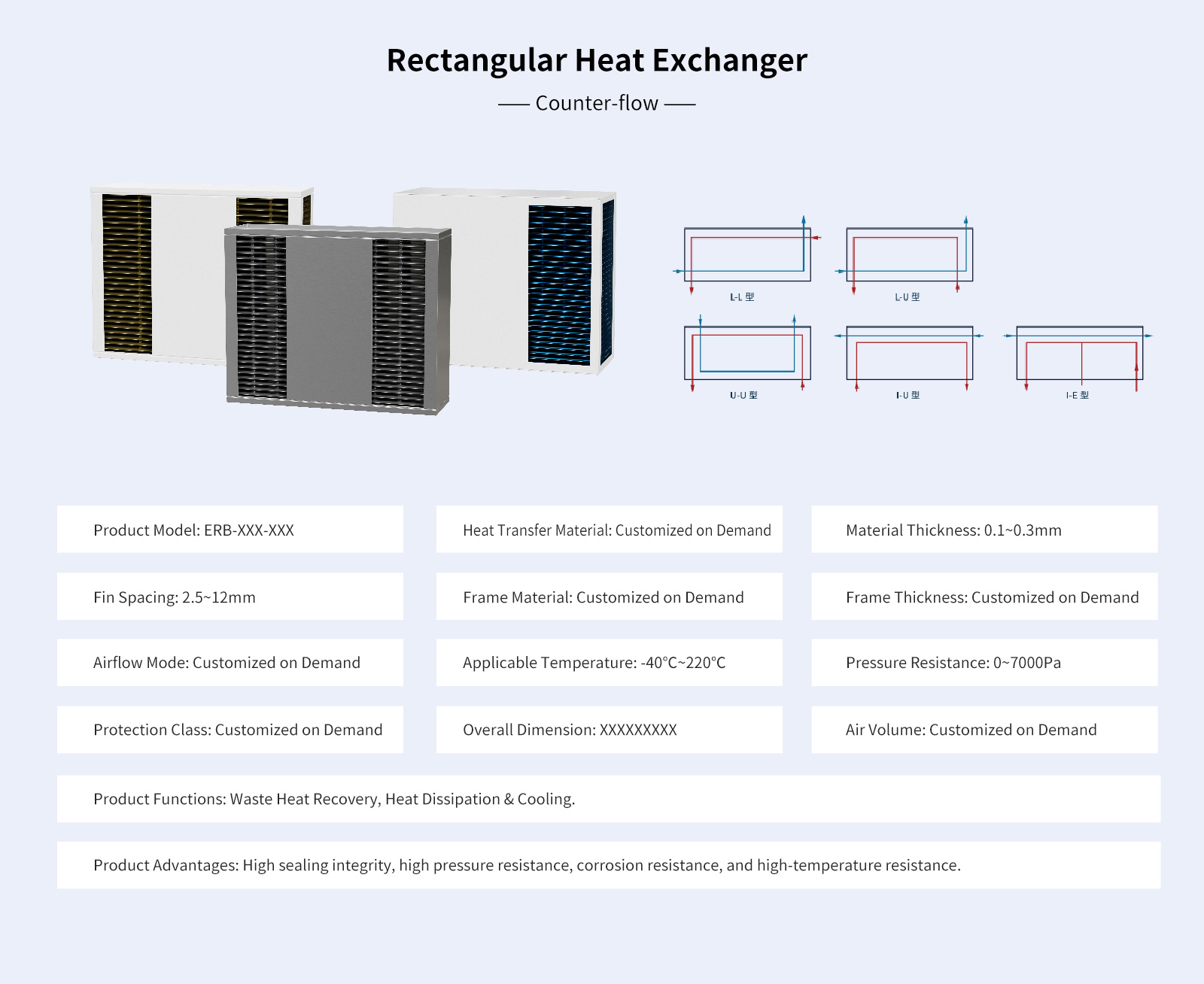

Rectangular Heat Exchanger
——Counter-flow ——
Product Model: ERB-XXX-XXX
Heat Transfer Material: Customized on Demand
Material Thickness: 0.1~0.3mm
Fin Spacing: 2.5~12mm
Frame Material: Customized on Demand
Frame Thickness: Customized on Demand
Airflow Mode: Customized on Demand
Applicable Temperature: -40℃~220℃
Pressure Resistance: 0~7000Pa
Protection Class: Customized on Demand
Overall Dimension: XXXXXXXXX
Air Volume: Customized on Demand
Product Functions: Waste Heat Recovery, Heat Dissipation & Cooling.
Product Advantages: High sealing integrity, high pressure resistance, corrosion resistance, and high-temperature resistance.
