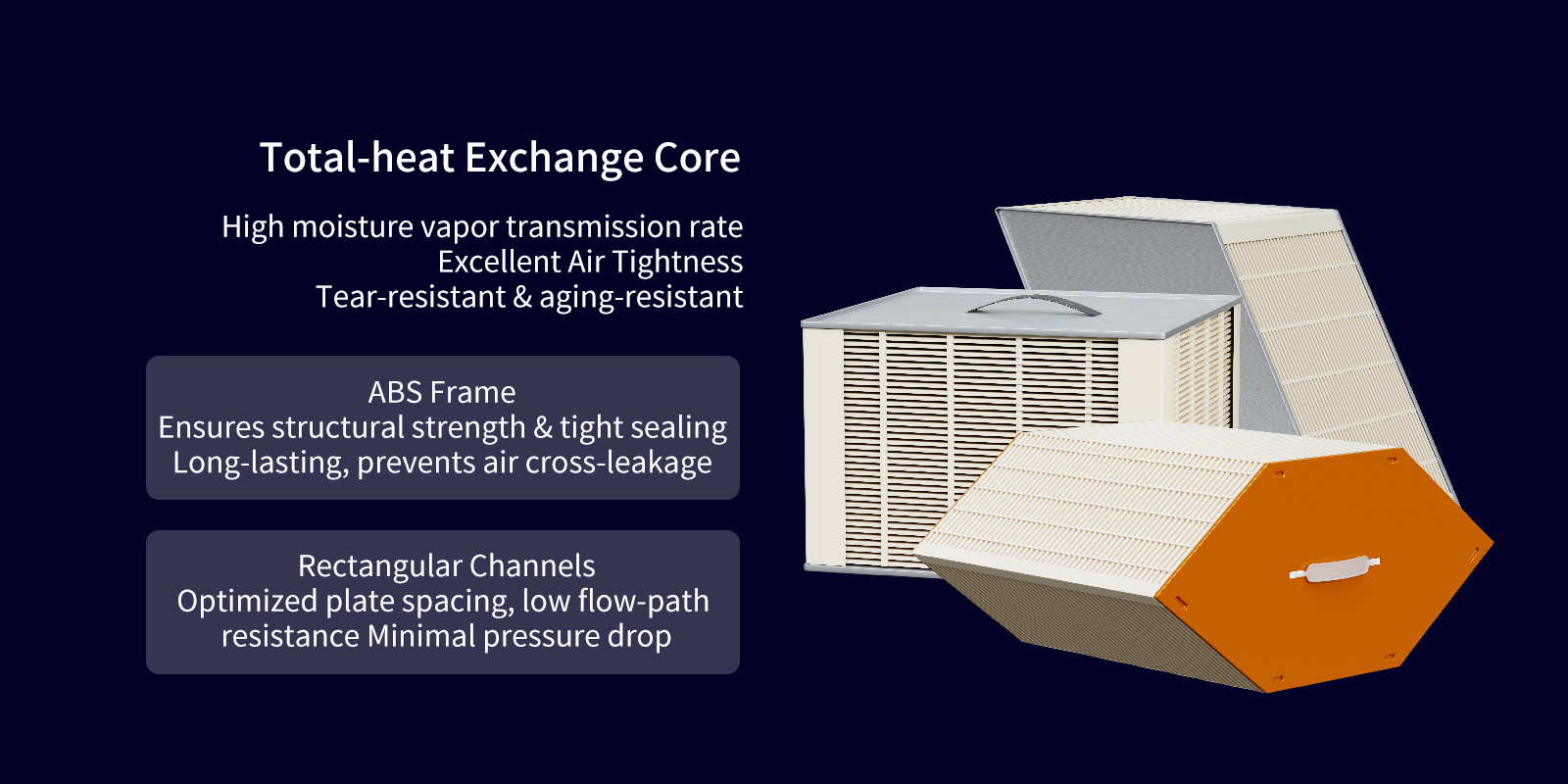

Total-heat Exchange Core
Total-heat Exchange Core
High moisture vapor transmission rate Excellent Air Tightness Tear‑resistant & aging‑resistant.
ABS Frame
Ensures structural strength & tight sealing Long‑lasting, prevents air cross‑leakage.
Rectangular Channels
Optimized plate spacing, low flow‑path resistance Minimal pressure drop.
Specially-processed proprietary fibers
Full-heat Exchange | High Efficiency & Energy Saving
Custom Flame Retardant Grade
Special flame-retardant fiber paper, specially treated with flame retardant for both moisture permeability and flame-retardant performance.
Polymer Membrane
Customizable Polymer Membrane Enhanced structural stability, washable & high energy efficiency.
Modular & Flexible Assembly
Square full-heat exchanger with multi-module splicing Flexible assembly & wide compatibility.
High moisture permeability.
Excellent air tightness.
Tear resistance.
Aging resistance.
Mildew resistance.

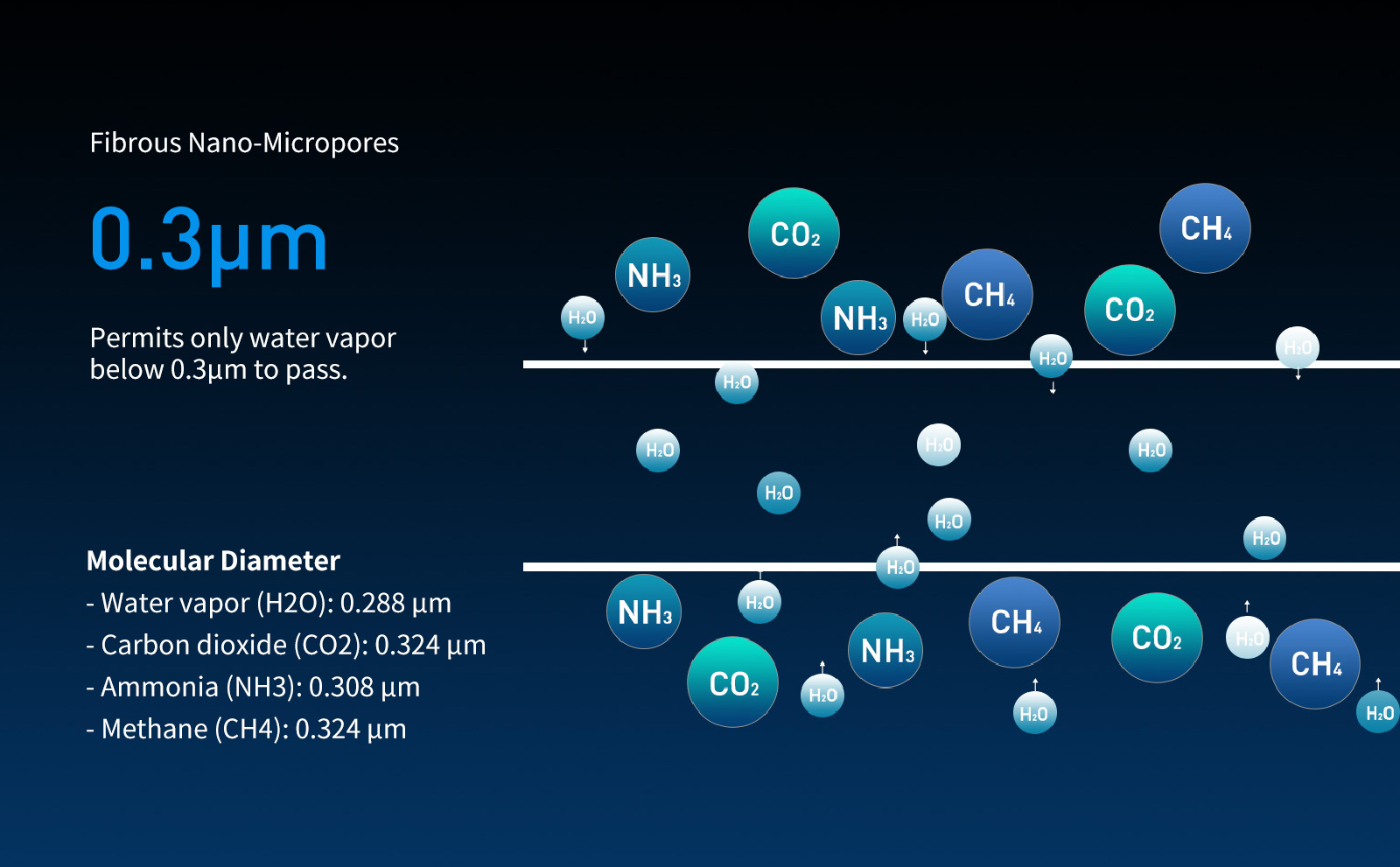

Fibrous Nano‑Micropores
0.3μm
Permits only water vapor below 0.3μm to pass.
Molecular Diameter
- Water vapor (H2O): 0.288 μm
- Carbon dioxide (CO2): 0.324 μm
- Ammonia (NH3): 0.308 μm
- Methane (CH4): 0.324 μm

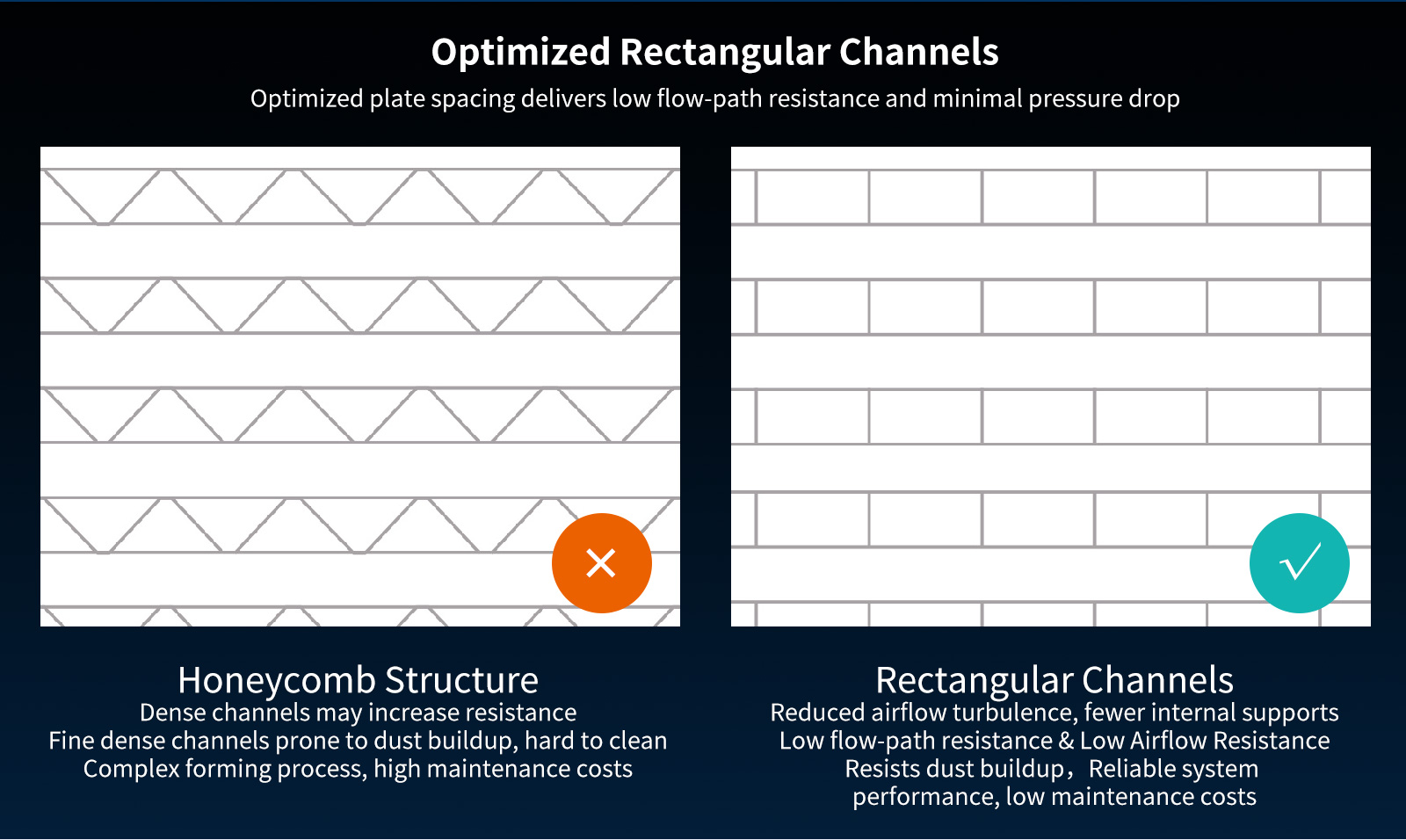

Optimized Rectangular Channels
Optimized plate spacing delivers low flow‑path resistance and minimal pressure drop
Honeycomb Structure
Dense channels may increase resistance Fine dense channels prone to dust buildup, hard to clean
Complex forming process, high maintenance costs.
Rectangular Channels
Reduced airflow turbulence, fewer internal supports Low flow‑path resistance & Low Airflow Resistance Resists dust buildup，Reliable system performance, low maintenance costs.

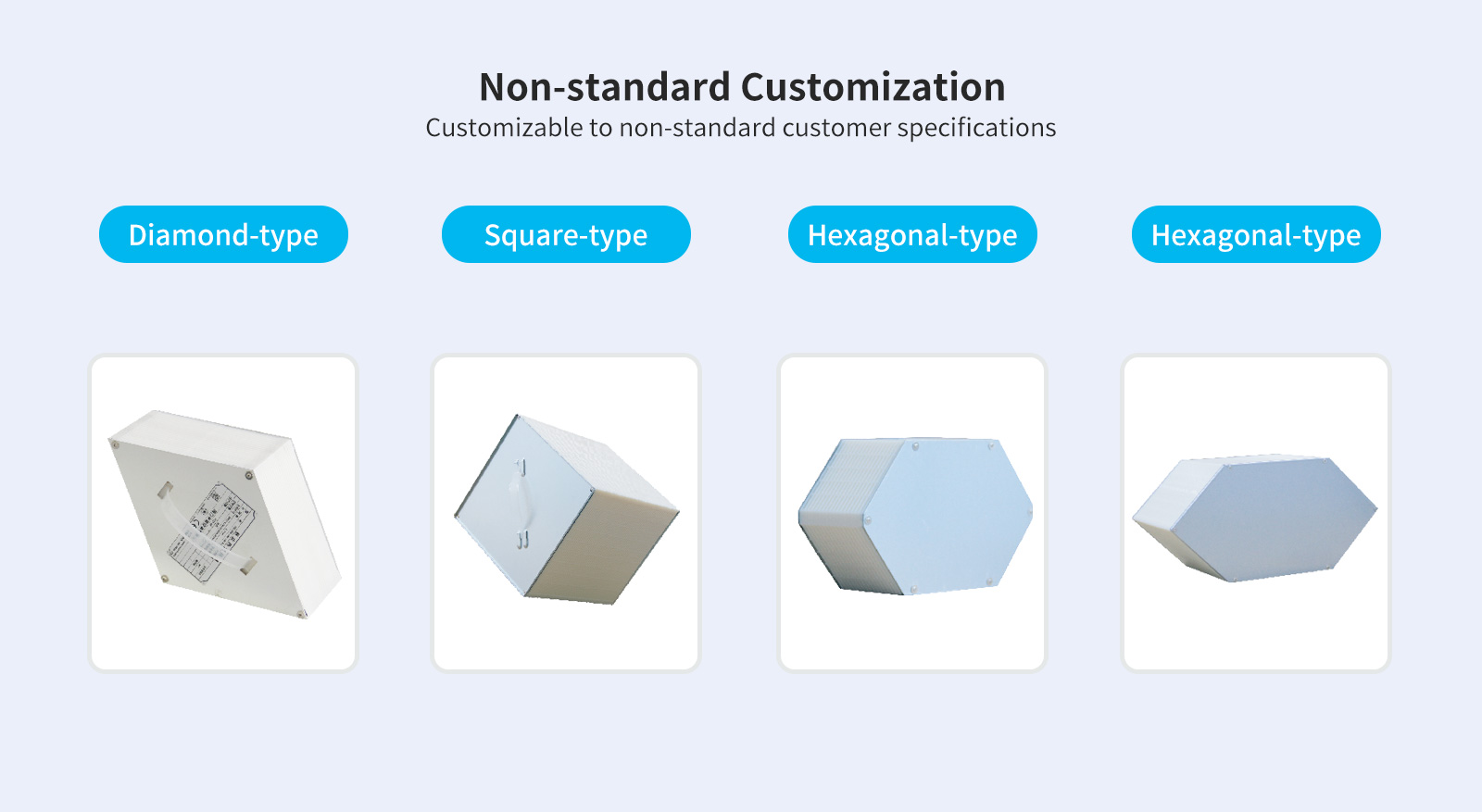

Non-standard Customization
Customizable to non‑standard customer specifications
Diamond-type、Square-type、Hexagonal-type.
Competitor Comparison
Comprehensive Strength Comparison | Core Competitiveness Analysis
High-efficiency Design >
Optimized flow path design boosts heat recovery efficiency and market competitiveness.
Standardized Models >
Standardized models cover mainstream air volumes, accelerating model selection and product development.
Customization Support >
Supports custom non-standard sizes & special air volumes to realize differentiated product design.
Full‑injection‑molded Frame >
Outstanding mildew‑proof & tear‑resistant performance, superior air tightness for lower after‑sales costs.
Low Maintenance Cost >
Stable structure, anti-dust & anti-scaling, minimizing maintenance workload.
Lightweight Design >
Convenient handling & integrated installation, improving assembly efficiency and reducing costs.

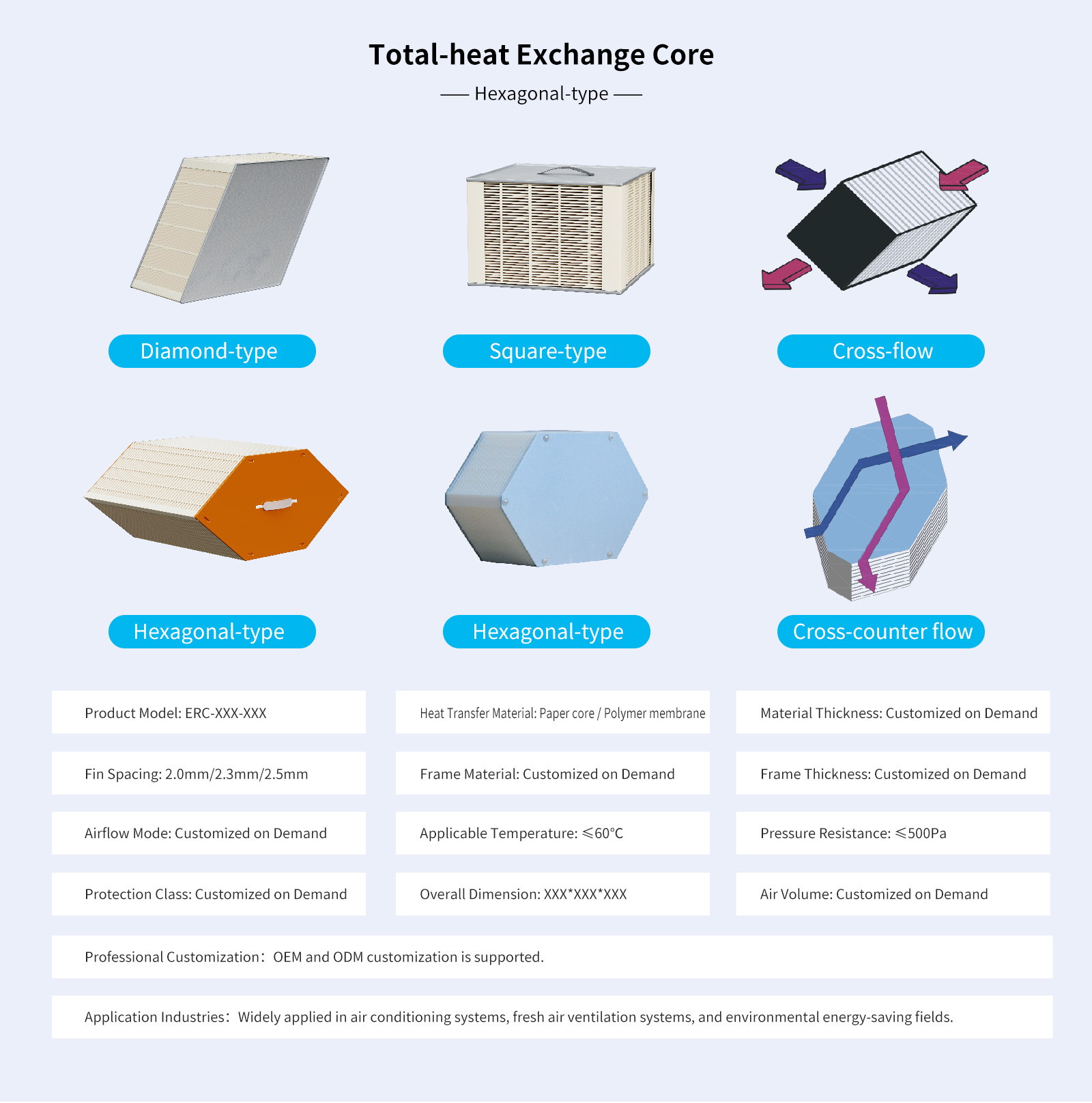

Total‑heat Exchange Core
—— Hexagonal‑type ——
Diamond-type、Square-type、Cross-flow.
Hexagonal-type、Hexagonal-type、Cross-counter flow.
Product Model: ERC-XXX-XXX
Heat Transfer Material: Paper core / Polymer membrane
Material Thickness: Customized on Demand
Fin Spacing: 2.0mm/2.3mm/2.5mm
Frame Material: Customized on Demand
Frame Thickness: Customized on Demand
Airflow Mode: Customized on Demand
Applicable Temperature: ≤60℃
Pressure Resistance: ≤500Pa
Protection Class: Customized on Demand
Overall Dimension: XXX*XXX*XXX
Air Volume: Customized on Demand
Professional Customization：OEM and ODM customization is supported.
Application Industries：Widely applied in air conditioning systems, fresh air ventilation systems, and environmental energy-saving fields.
