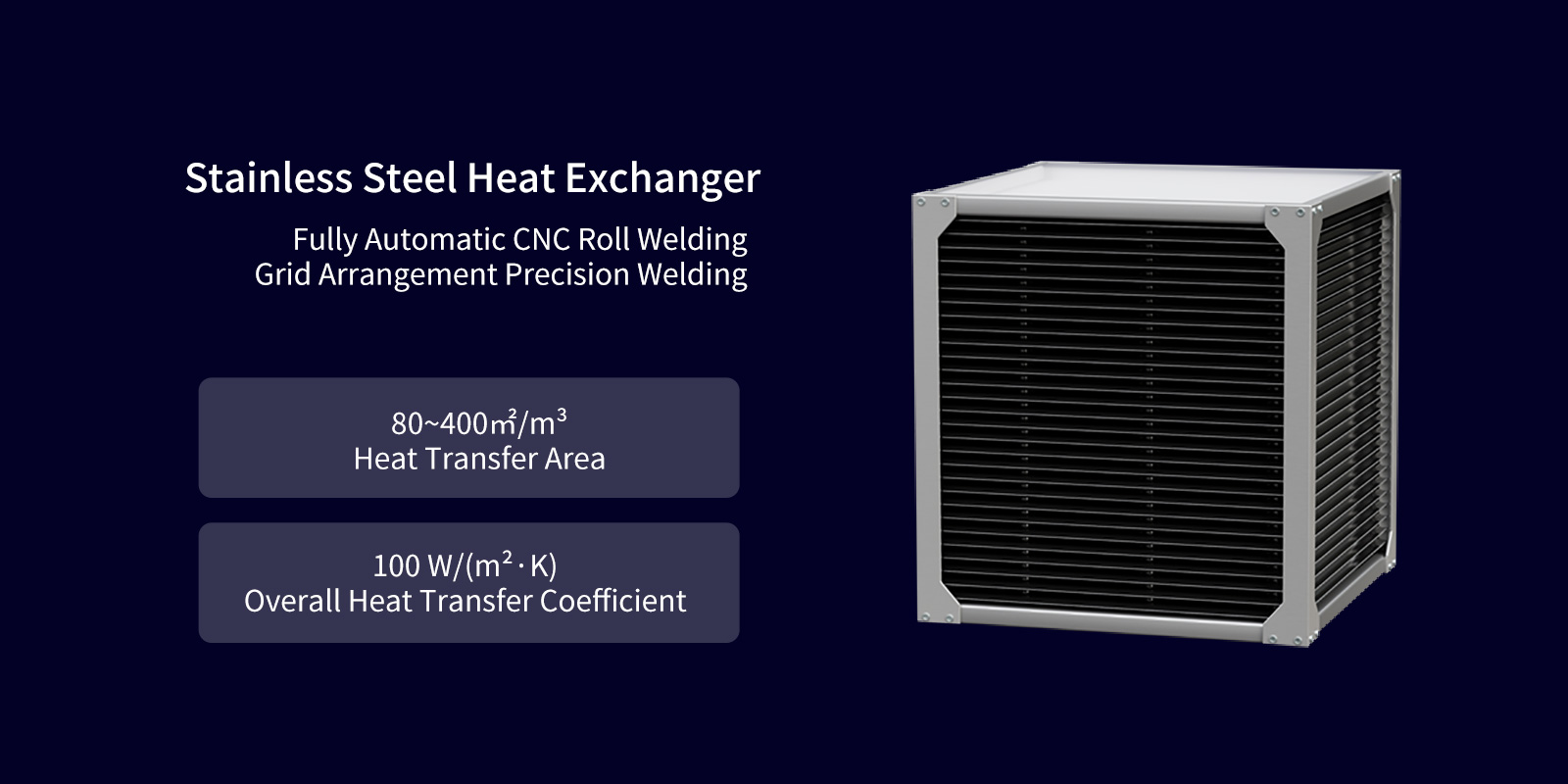

Stainless Steel Heat Exchanger
Stainless Steel Heat Exchanger
Fully Automatic CNC Roll Welding Grid Arrangement Precision Welding.
80~400㎡/m³ Heat Transfer Area.
100 W/(m²·K) Overall Heat Transfer Coefficient.
Corrosion-resistant Stainless Steel
Capable of withstanding working conditions of high temperature, high humidity and heavy salt spray on various production lines.
30000Pa Custom Non-standard Pressure Differential.
IPX5 Ingress Protection Rating.
-40~450℃ Temperature Resistance Range.
Boasts excellent pressure resistance.
High Strength & Temperature Resistant.
Corrosion & Oxidation Resistant.
Excellent Thermal Conductivity.
Leakage Rate: < 0.5%.

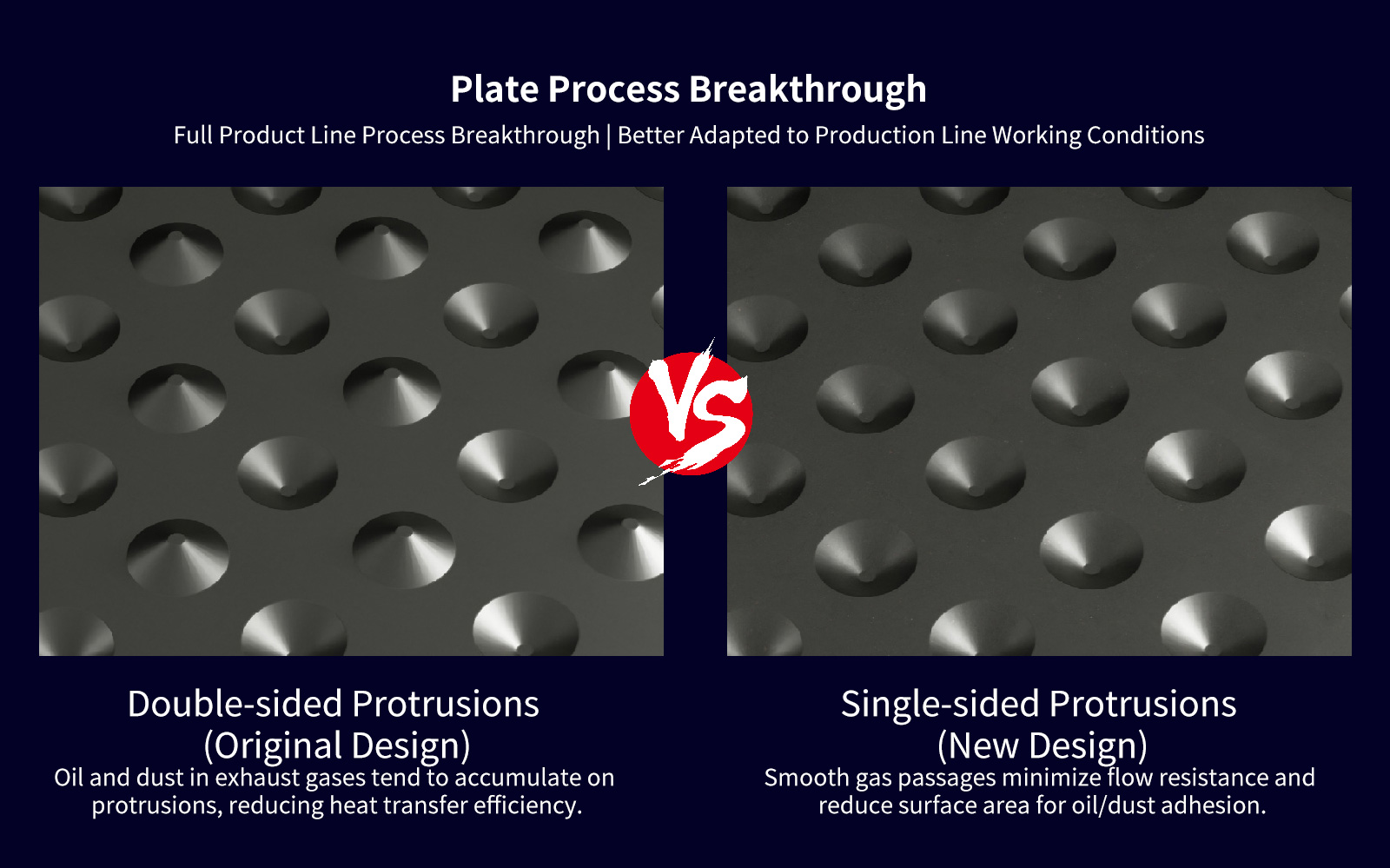

Plate Process Breakthrough
Full Product Line Process Breakthrough | Better Adapted to Production Line Working Conditions.
Double-sided Protrusions (Original Design)
Oil and dust in exhaust gases tend to accumulate on protrusions, reducing heat transfer efficiency.
Single-sided Protrusions (New Design)
Smooth gas passages minimize flow resistance and reduce surface area for oil/dust adhesion.

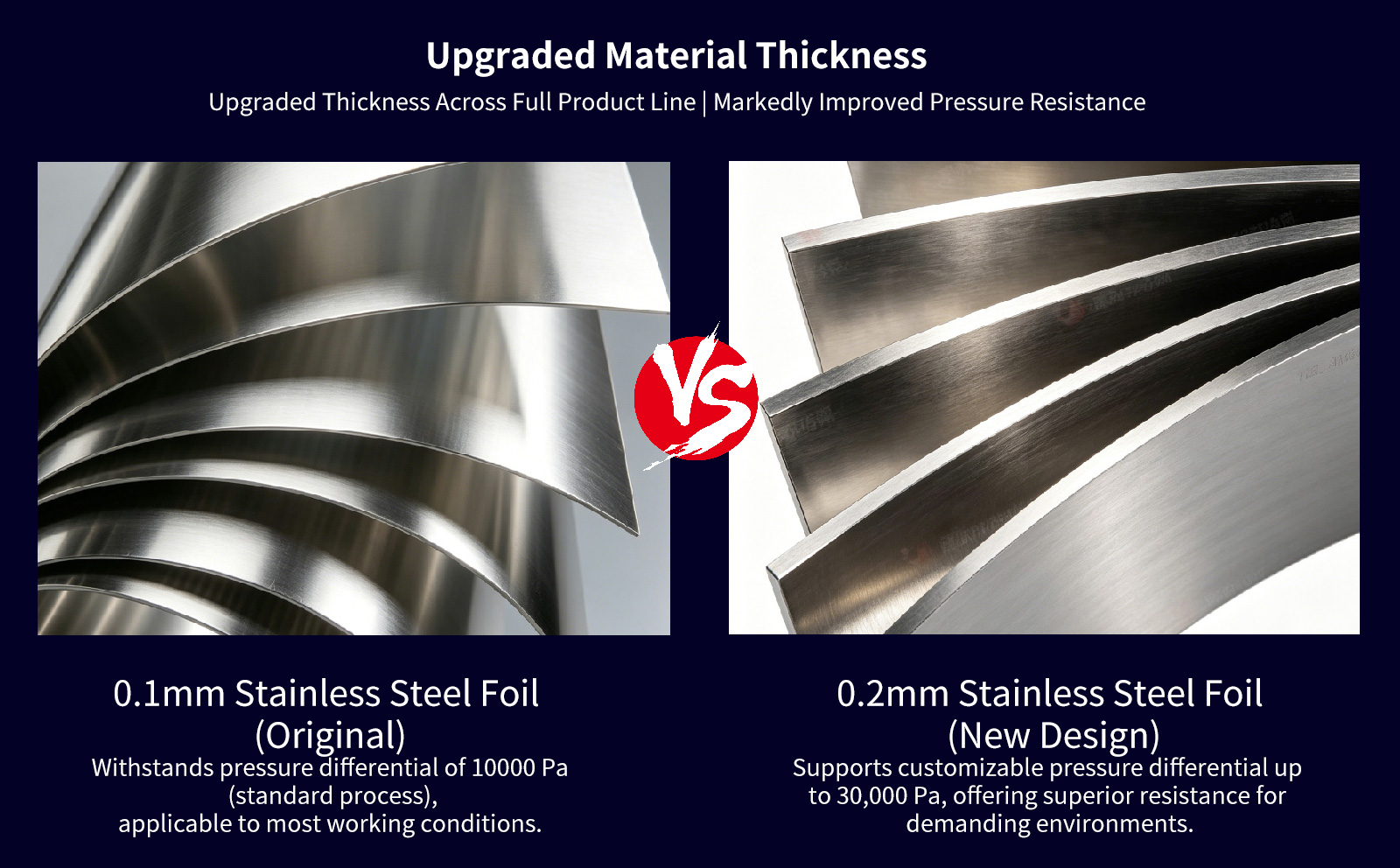

Upgraded Material Thickness
Upgraded Thickness Across Full Product Line | Markedly Improved Pressure Resistance.
0.1mm Stainless Steel Foil (Original)
Withstands pressure differential of 10000 Pa (standard process),applicable to most working conditions.
0.2mm Stainless Steel Foil (New Design)
Supports customizable pressure differential up to 30,000 Pa, offering superior resistance for demanding environments.

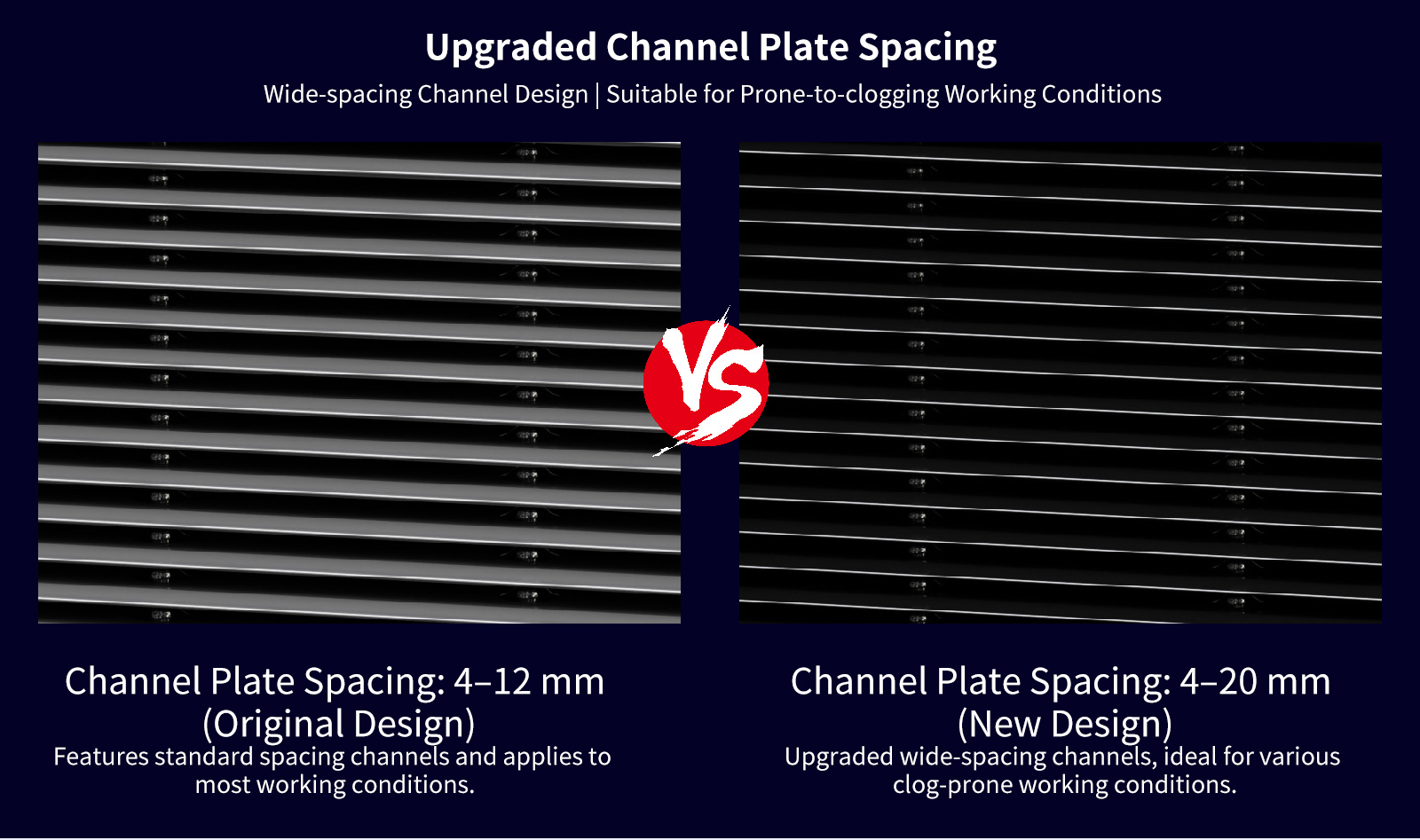

Upgraded Channel Plate Spacing
Wide-spacing Channel Design | Suitable for Prone-to-clogging Working Conditions.
Channel Plate Spacing: 4–12 mm (Original Design)
Features standard spacing channels and applies to most working conditions.
Channel Plate Spacing: 4–20 mm (New Design)
Upgraded wide-spacing channels, ideal for various clog-prone working conditions.

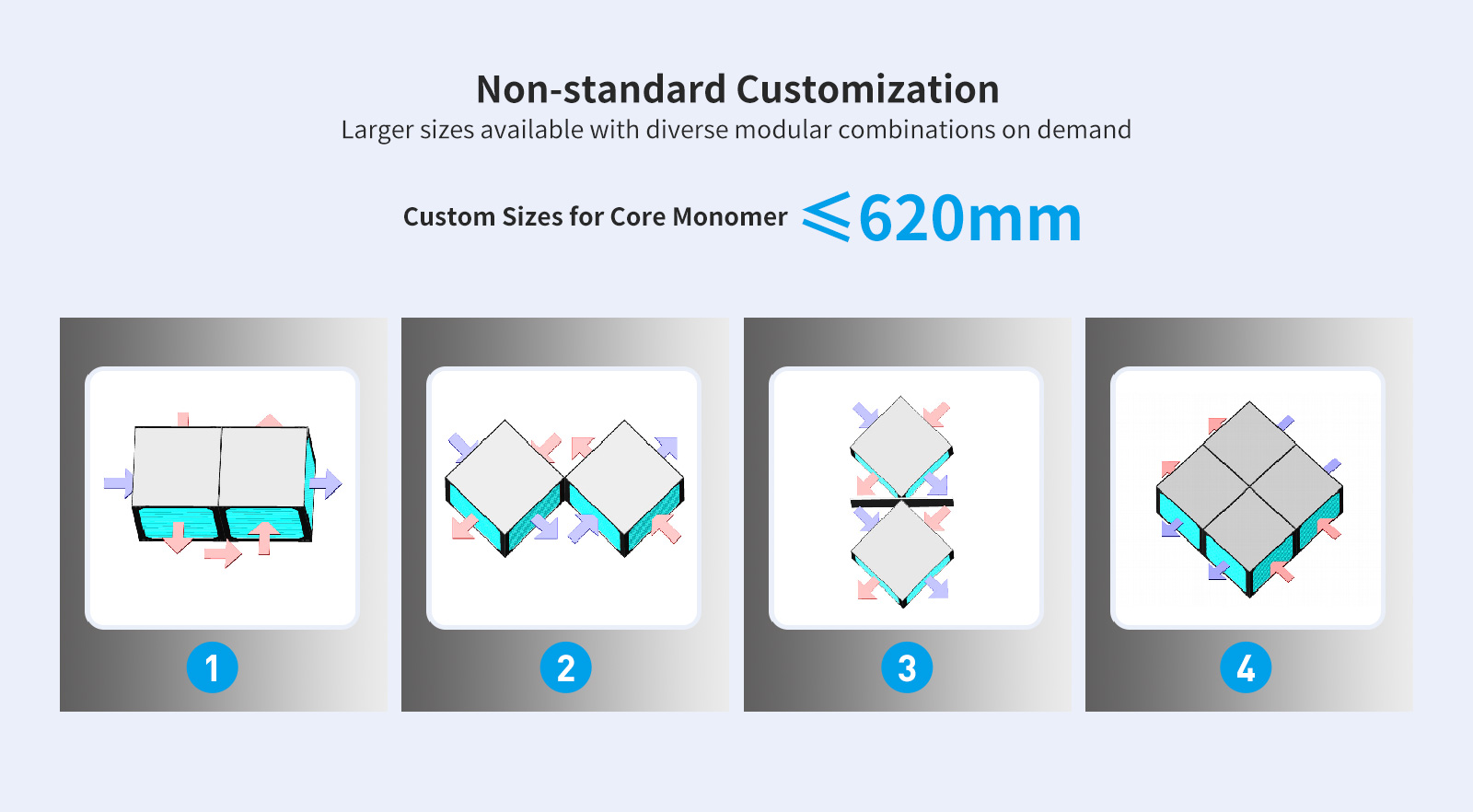

Non-standard Customization
Larger sizes available with diverse modular combinations on demand.
Custom Sizes for Core Monomer≤620mm.
Competitor Comparison
Comprehensive Strength Comparison | Core Competitiveness Analysis.
Price >
High Cost-effectiveness High Return.
Weight >
Core Assembly & On-site Installation Easier Routine Maintenance.
Heat Transfer Efficiency >
High Heat Transfer Efficiency Steel Foil Thickness: 0.1mm~0.2mm.
Leakage Rate >
Full-automatic CNC Roll Welding Process Zero Leakage Rate.
Pressure Resistance >
Grid-type Precision Spot Welding Technology Non-standard Customization
30,000 Pa Pressure Resistance.
Temperature Resistance >
Sealing Technology Breakthrough Operating Temperature: -40℃~450℃.

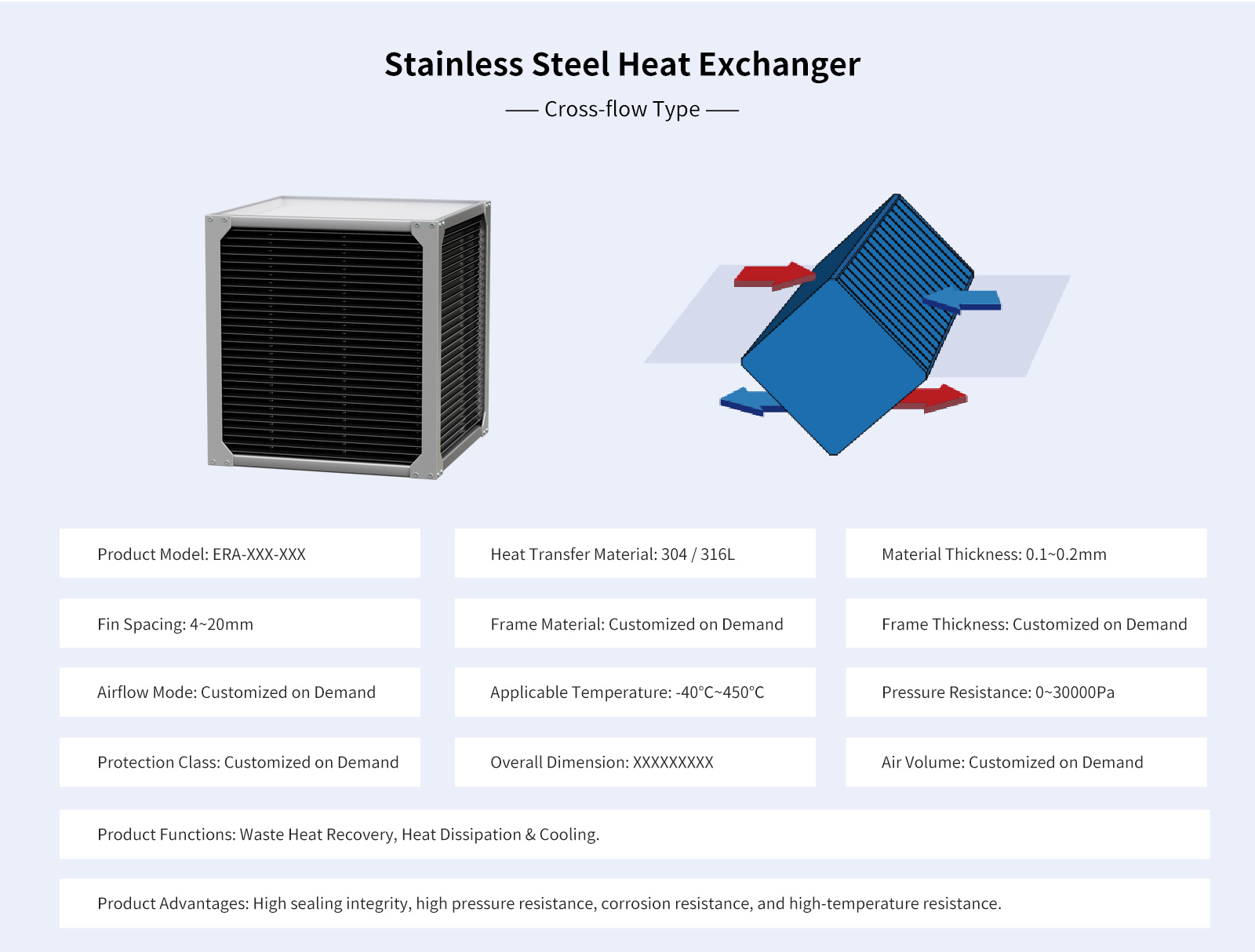

Stainless Steel Heat Exchanger
—— Cross-flow Type ——
Product Model: ERA-XXX-XXX
Heat Transfer Material: 304 / 316L
Material Thickness: 0.1~0.2mm
Fin Spacing: 4~20mm
Frame Material: Customized on Demand
Frame Thickness: Customized on Demand
Airflow Mode: Customized on Demand
Applicable Temperature: -40℃~450℃
Pressure Resistance: 0~30000Pa
Protection Class: Customized on Demand
Overall Dimension: XXXXXXXXX
Air Volume: Customized on Demand
Product Functions: Waste Heat Recovery, Heat Dissipation & Cooling.
Product Advantages: High sealing integrity, high pressure resistance, corrosion resistance, and high-temperature resistance.
