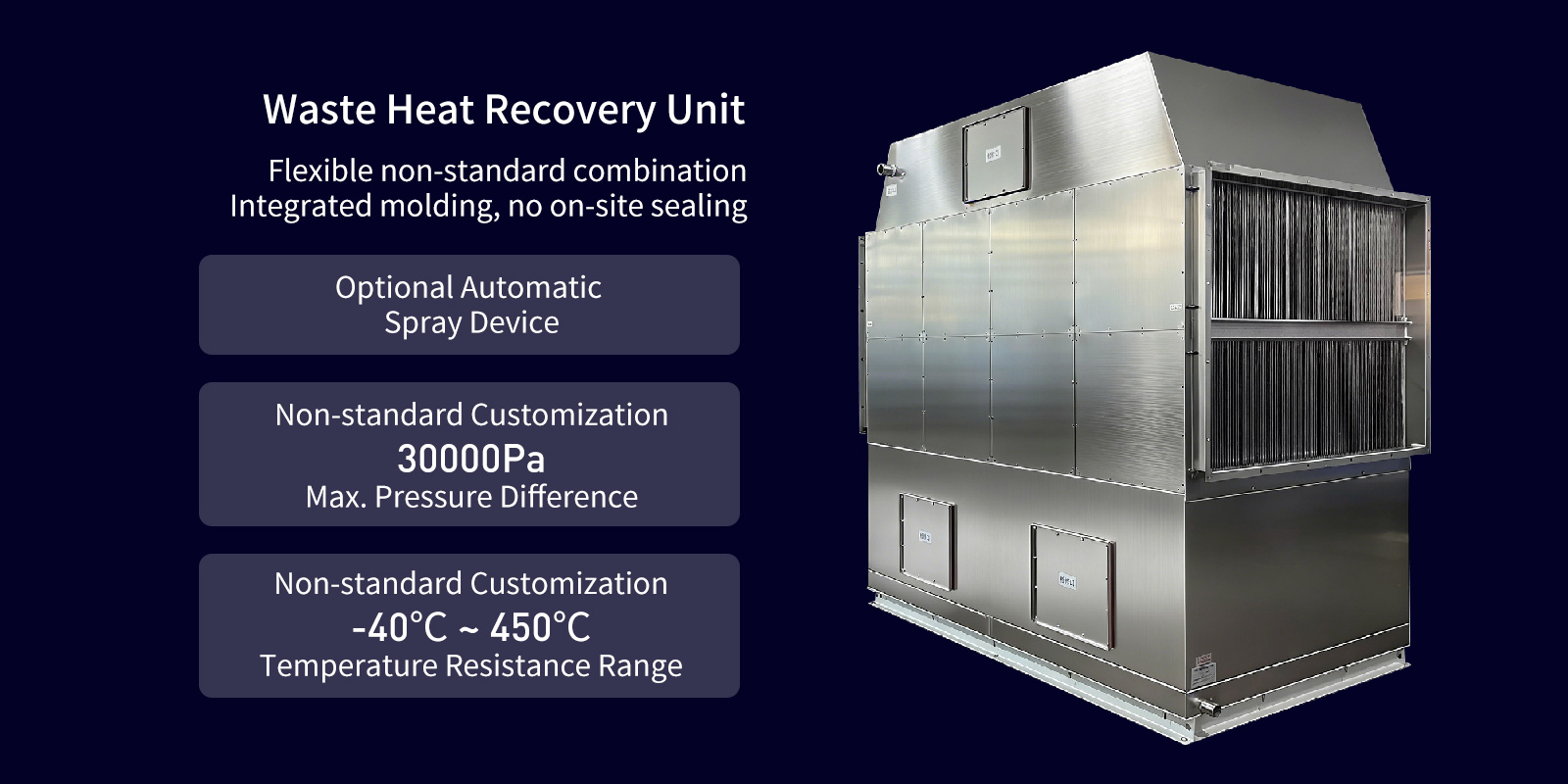

Waste Heat Recovery Unit
Waste Heat Recovery Unit
Flexible non-standard combination Integrated molding, no on-site sealing
Optional Automatic Spray Device.
Non-standard Customization 30000Pa Max. Pressure Difference.
Non-standard Customization-40℃ ~ 450℃ Temperature Resistance Range.

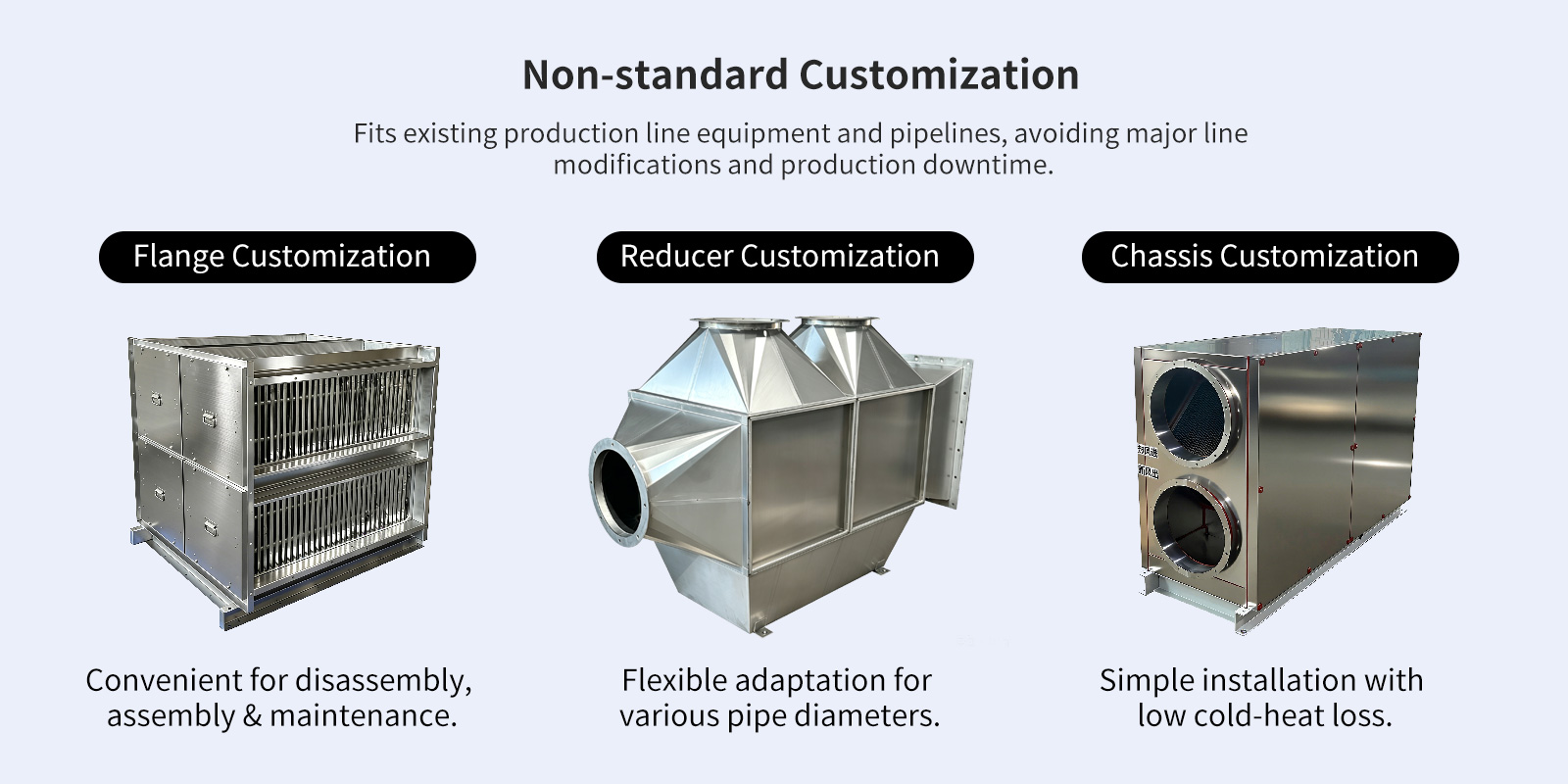

Non-standard Customization
Fits existing production line equipment and pipelines, avoiding major line modifications and production downtime.
Flange Customization./Reducer Customization./Chassis Customization.
Convenient for disassembly, assembly & maintenance.
Flexible adaptation for various pipe diameters.
Simple installation with low cold-heat loss.

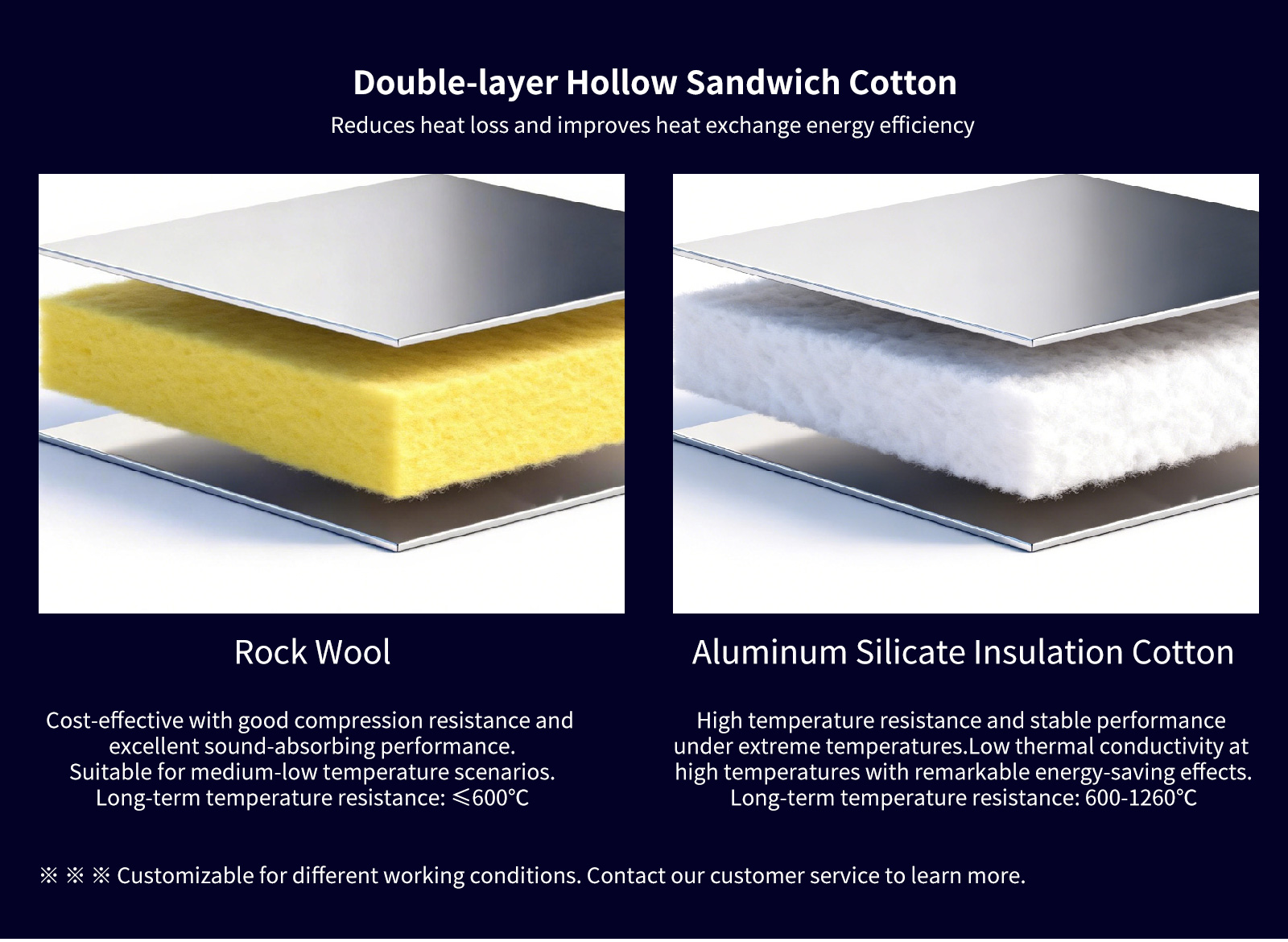

Double-layer Hollow Sandwich Cotton
Reduces heat loss and improves heat exchange energy efficiency.
Rock Wool
Cost-effective with good compression resistance and excellent sound-absorbing performance.
Suitable for medium-low temperature scenarios.Long-term temperature resistance: ≤600℃.
Aluminum Silicate Insulation Cotton
High temperature resistance and stable performance under extreme temperatures.Low thermal conductivity at high temperatures with remarkable energy-saving effects.Long-term temperature resistance: 600‑1260℃.
※ ※ ※ Customizable for different working conditions. Contact our customer service to learn more.

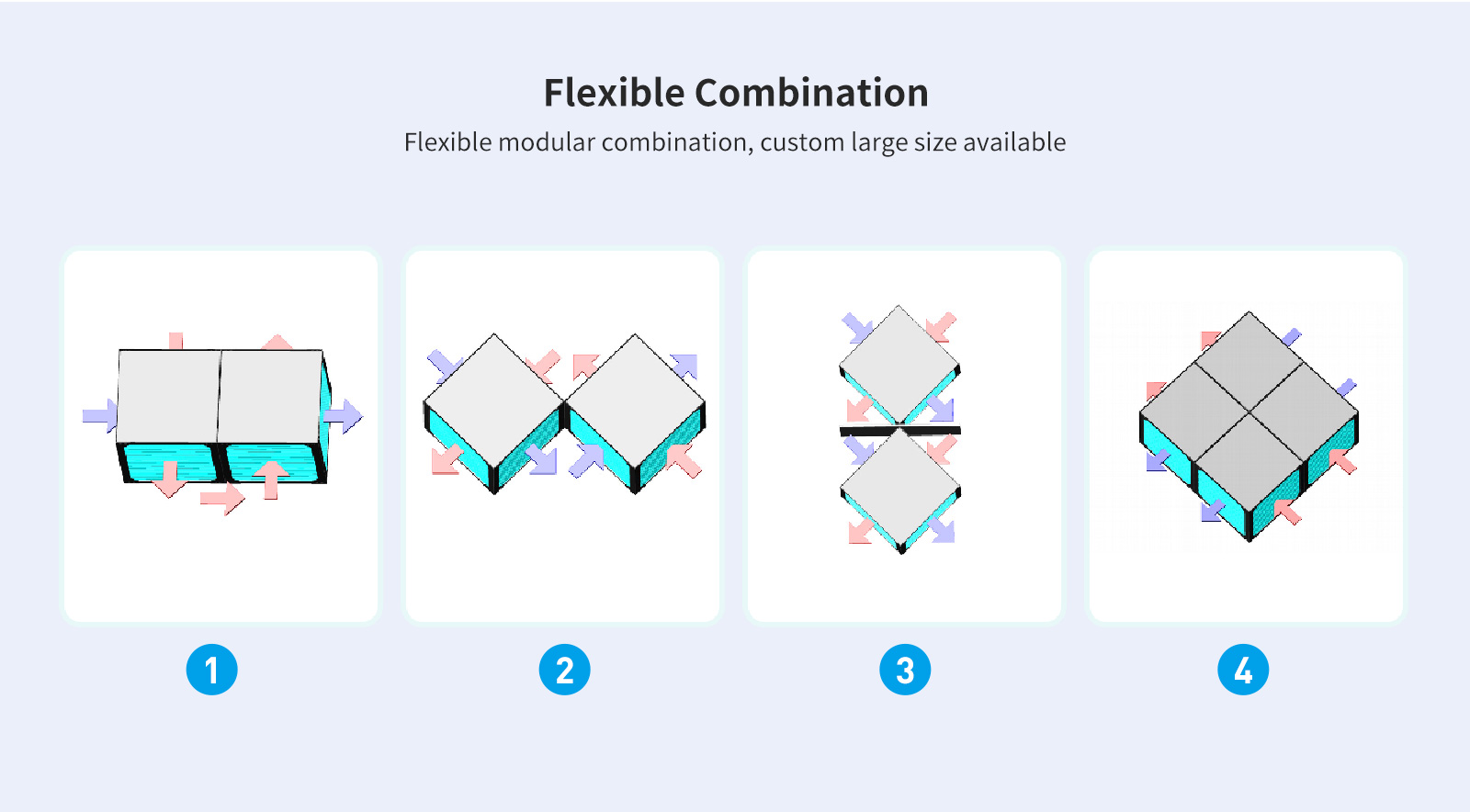

Flexible Combination
Flexible modular combination, custom large size available

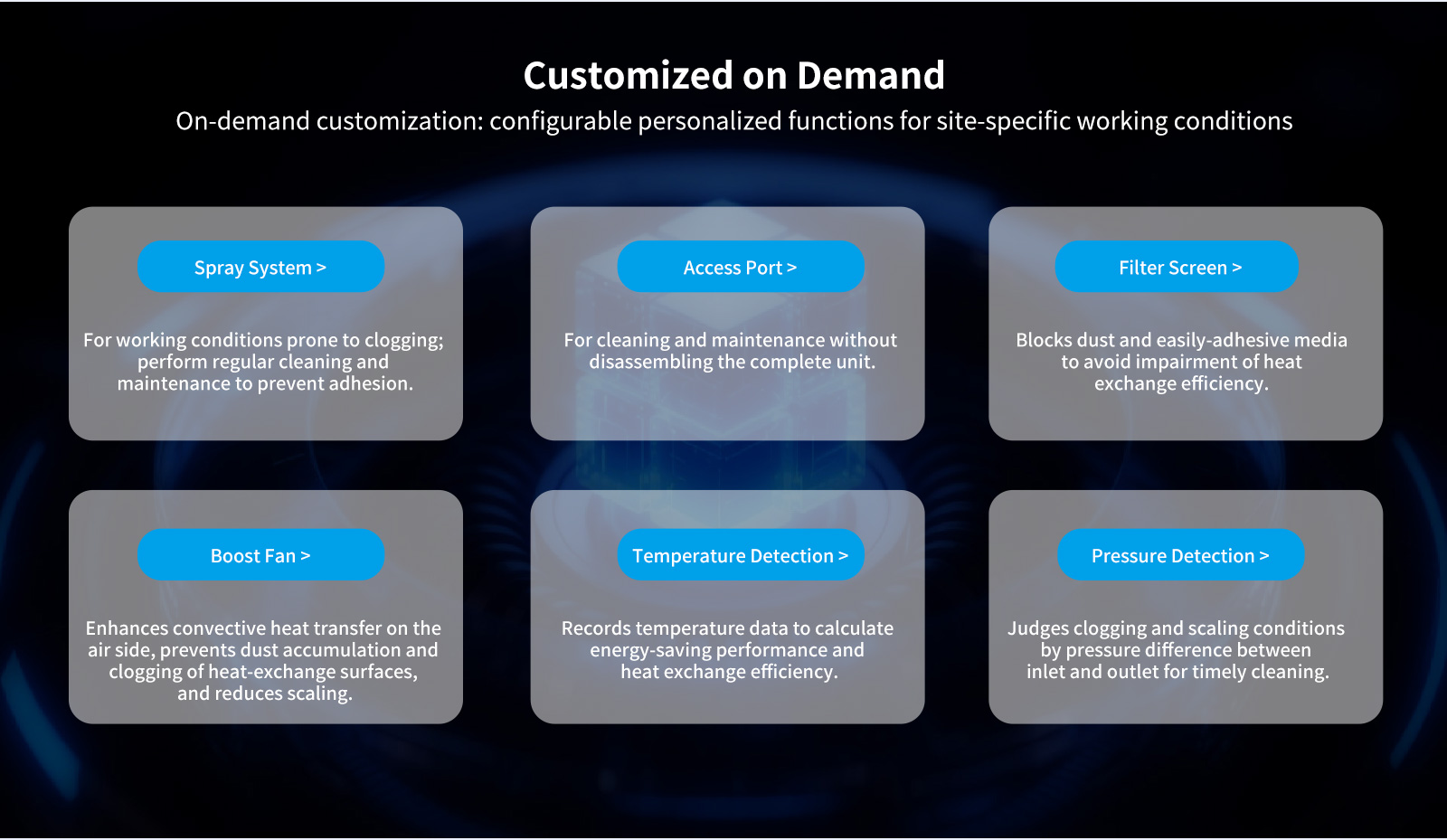

Customized on Demand
On-demand customization: configurable personalized functions for site-specific working conditions
Spray System >
For working conditions prone to clogging; perform regular cleaning and maintenance to prevent adhesion.
Access Port >
For cleaning and maintenance without disassembling the complete unit.
Filter Screen >
Blocks dust and easily-adhesive media to avoid impairment of heat exchange efficiency.
Boost Fan >
Enhances convective heat transfer on the air side, prevents dust accumulation and clogging of heat-exchange surfaces, and reduces scaling.
Temperature Detection >
Records temperature data to calculate energy-saving performance and heat exchange efficiency.
Pressure Detection >
Judges clogging and scaling conditions by pressure difference between inlet and outlet for timely cleaning.

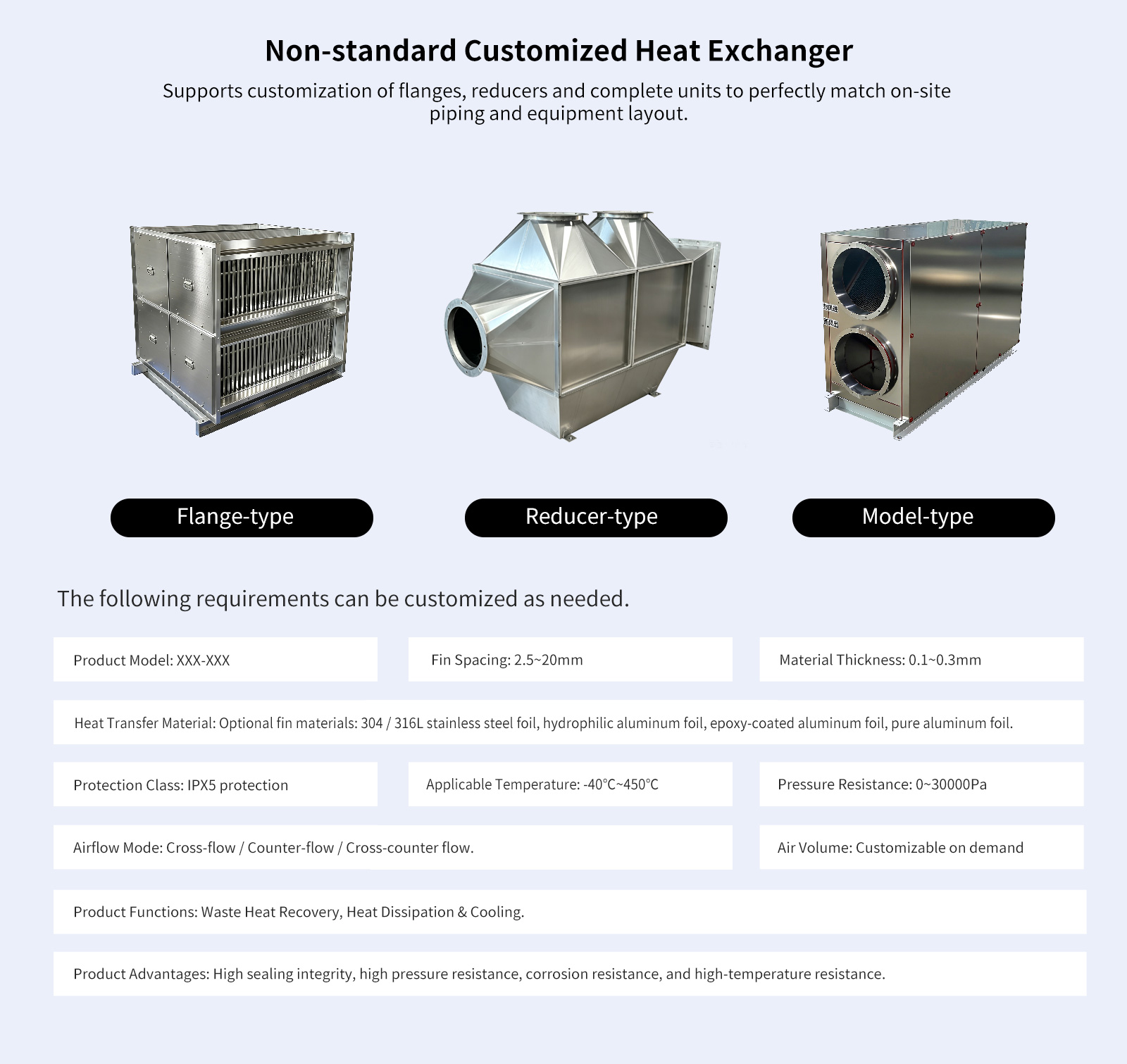

Non-standard Customized Heat Exchanger
Supports customization of flanges, reducers and complete units to perfectly match on-site
piping and equipment layout.
Flange-type./Reducer-type./Model-type.
The following requirements can be customized as needed.
Product Model: XXX-XXX.
Fin Spacing: 2.5~20mm.
Material Thickness: 0.1~0.3mm.
Heat Transfer Material: Optional fin materials: 304 / 316L stainless steel foil, hydrophilic aluminum foil, epoxy-coated aluminum foil, pure aluminum foil.
Protection Class: IPX5 protection.
Applicable Temperature: -40℃~450℃.
Pressure Resistance: 0~30000Pa.
Airflow Mode: Cross-flow / Counter-flow / Cross-counter flow.
Air Volume: Customizable on demand.
Product Functions: Waste Heat Recovery, Heat Dissipation & Cooling.
Product Advantages: High sealing integrity, high pressure resistance, corrosion resistance, and high-temperature resistance.
